Description

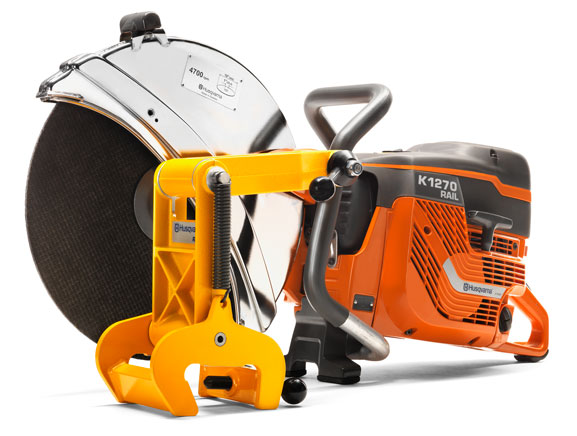

Rail traffic with high-speed trains and welded rails call for efficient, high-precision cutters. Because welded rails are subject to considerable tension as the temperature fluctuates, every cut has to be at a perfect right angle if the rail is to withstand the stresses involved and avoid displacement or failure. The same applies to the isolating joints which separate whole sections of rail for automatic signalling purposes, letting the system know the train’s exactly location. Rail cutting and welding operations must be done quickly, often between trains, to avoid delays. The K 1250 Rail is equipped with the RA 10 attachment, which fastens to the rail to ensure a perfect right-angle cut.
| Engine | |
|---|---|
| Power output | 5,8 kW |
| Cylinder displacement | 119 cm³ |
| Cutting equipment | |
| Blade diameter | 350/400 mm |
| Max cutting depth | 125/145 mm |
| Dimensions | |
| Power/weight ratio | 0.28 / 0.27 |
| Weight (excl. cutting equipment) | 20,5/21,2 kg |
| Vibration | |
| Vibrations front handle | 5,3 m/s² |
| Vibrations rear handle | 10,4 m/s² |
| Sound and noise | |
| Sound level | 102 dB(A) |
| Sound power level, LWA | 118 dB(A) |
