Description

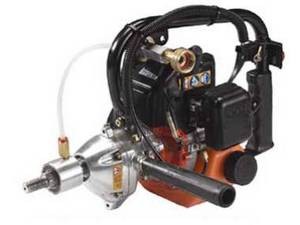

•1.5hp Two-Stroke Engine features
•Two Piston Rings and a Stress Relieved, Chrome-plated Cylinder for
•Longer Engine Life
•Dual Position Front Handle – Left or Right for Operator Flexibility
•Portable and light-weight
•Drill anywhere – in any position – without the hassles of electrical cords, compressors, generators or battery rechargers
•½ Inch Chuck Capacity accepts
•A wide variety of Wood, Steel, and Concrete bits – while
•Optional Wet Kit
•Reduces friction, heat and dust when drilling masonry or concrete
•Low Gear Reduction Ratio
•Provides significantly higher drilling speeds, ideal for concrete drilling and coring applications
•No nonsense 2-stroke maintenance –
•Designed and Manufactured by Japan’s Finest Engineers
•Security and peace of mind with
| Part | Specification |
| Engine | Tanaka 2-Stroke Full Crank |
| Displacement (cc) | 26 |
| Max hp | 1.5 |
| Max kW | 1.1 |
| Handle Type/s: Front | 2-Position Adjustable (L or R) |
| Rear | Pistol Grip |
| Clutch System | Centrifugal |
| Starter System | Recoil |
| SmartStart | Not Available for this Model |
| Ignition | Electronic |
| Carburettor | Walbro Diaphragm with Primer Assist |
| Muffler System | Spark Arrestor |
| Gearcase | One Speed Forward |
| Reduction Ratio | 8:1 |
| Chuck Size (mm/in) | 12.5/1/2″ (Not Included) |
| Max Chuck RPM at Engine RPM | 0-1250/10,000 |
| Maximum Drill Bit Diameter (mm) | 100 – 150* (*Masonry Core Drilling Depending on Material) |
| Fuel Tank Capacity (cc) | 500 |
| Weight (kgs) | 5.1 |
•Comprehensive Spare Parts Range available
•Tanaka Warranty provides
•One-Year Coverage for Professionals
•Five-Year Coverage for Homeowners
