Product Description:
Rugged diesel drive trash pumps in 2″, 3″ and 4″ with flows to 1800 litres per minute, heads to 27 metres and suction lift to 7.6 metres. Pumps feature unique mechanical seals that outlast conventional seals by up to six times, a big front mounted cleanout port that enables pumps to be purged of debris without disconnecting pipe work, and high SG, cast iron, non clog style, open impeller and volute system designed to pump solids and resist wear.
Applications:
- Construction site dewatering
- Waste water handling
- Effluent pump out
- Livestock waste water disposal
- Solid laden mine waste pump out
| Model | Engine Brand | Engine model | HP | Max Head (m) | Max Flow (lpm) | Suction port | Discharge port | Self primes to (m) | Max solid size |
| QP203T | Yanmar | L48 or L48E | 4.8 | 27 | 600 | 2″ | 2″ | 7.3 | 0.75″ |
| QP300T | Yanmar | L48 or L48E | 4.8 | 27 | 650 | 3″ | 3″ | 7.4 | 0.75″ |

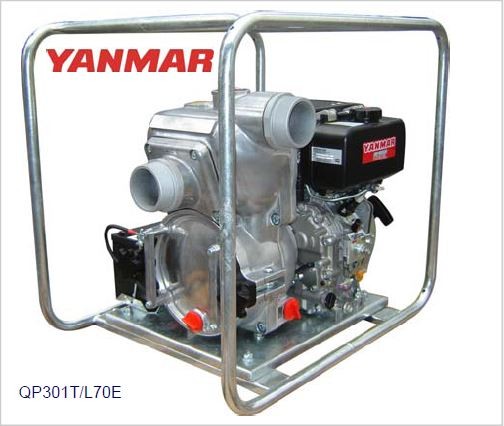

| QP301T | Yanmar | L70E | 7.0 | 24 | 1200 | 3″ | 3″ | 7.5 | 1″ |
| QP40T | Yanmar | L100E | 10.0 | 24 | 1800 | 4″ | 4″ | 7.6 | 1.5″ |
Additional information
| brand | YANMAR |
|---|
