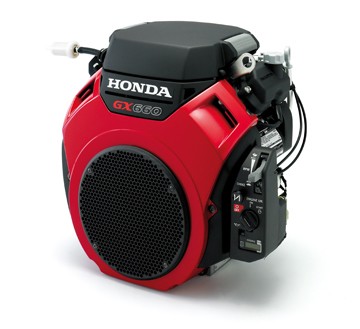

Description
| Engine Type | Air cooled 4 stroke OHV petrol engine, 90° V-twin design, horizontal shaft |
| Cylinder Sleeve Type | Cast Iron Sleeve |
| Bore x Stroke | 78 x 72mm |
| Displacement | 688 cm3 |
| Compression | 9.3 : 1 |
| Net Power | 16.0 Kw (21.5 HP) / 3600 rpm) |
| Cont. rated power | 11.0 kW (14.8 HP) / 3000 rpm 12.5 kW (16.8 HP) / 3600 rpm |
| Max net torque | 48.3 Nm / 4.93 Kgm / 2500 rpm |
| Ignition System | CDI |
| Starting System | Electric Starter |
| Fuel cons. at rated power | 6.3 L/hr – 3600 rpm |
| Engine Oil Capacity | 1.9 l |
| Dimensions (L x W x H) | 429 x 410 x 438 mm |
| Dry Weight | 44.6 kg |
Additional information
| brand | HONDA |
|---|
