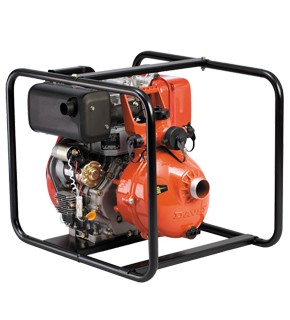

Davey 5210YE Fire Pump

Flows to 800lpm

Maximum total heads 92m

Maximum suction lift 7m

Maximum water temperature 50oC

Minimum water temperature 1oC

Minimum suction

pipe size L70 11/2”

L100 2”

Suction pipe strainer Required

Inlet size L70 11/2”BSP(M)

L100 2”BSP(M)

Outlet sizes L70 2 x 11/2”BSP(M)

2 x 1”BSP(M)

L100 1 x 2”BSP(M)

2 x 1”BSP(M) &

Priming Port 1 x 11/
